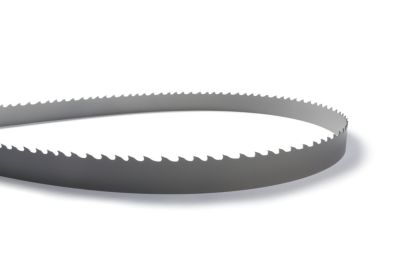

Lenox Cast MasterTM XL Carbide Band Saw BladesCast Master XL Superior Performance in high Speed Aluminum Cuttin Applications
|
LONG BLADE LIFE AT HIGH BAND SPEEDS
Special grade of carbide is designed to wear slowly when cutting aluminum
Multi-chip tooth pattern balances the chip load and reduces cutting forces
Next generation welding technology reduces premature tooth loss

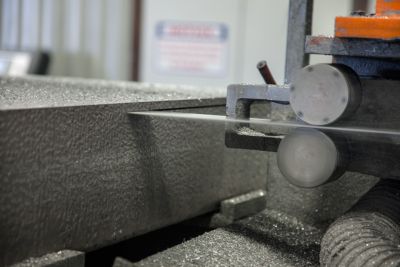

EXCEPTIONAL PART FINISH AT INCREASED CUTTING RATES
Precision grind prevents material build up on the tooth edge
Teeth have sharp edges and high rake angles to penetrate easily and leave a smooth finish

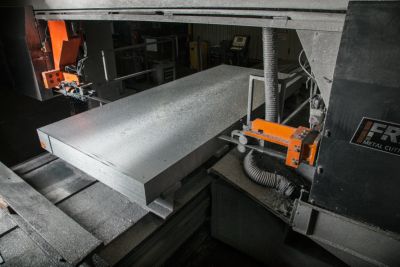

STRAIGHT CUTS IN LARGE BLOCK APPLICATIONS
High alloy backing steel and fatigue resistant gullet geometry minimize the impact of wide guide spacing
APPLICATION
Aluminum/Non-Ferrous
Castings
Engine Blocks
Gates & Risers
| WIDTH X THICKNESS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IN | MM | 0.6/0.8 | 0.9/1.1 | 1.4/2.0 | 2/3 | |||||
| 1-1/4" x 0.042 | 34 x 1.07 |  |
||||||||
| 1-1/2" x 0.050 | 41 x 1.27 | * |
* |
|||||||
| 2" x 0.063 | 54 x 1.60 | |
|
|||||||
| 2-5/8" x 0.063 | 67 x 1.60 | |
|
|||||||
| 3" x 0.063 | 80 x 1.60 | |
|
|||||||
|
||||||||||
| WIDTH OR DIAMETER OF CUT | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INCHES | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 11 | 14 | 16 | 18 | 20+ |
| MM | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 275 | 350 | 400 | 450 | 500+ |
| 0.6/0.8 | ||||||||||||||
| 0.9/1.1 | ||||||||||||||
| 1.4/2.0 | ||||||||||||||
| 2/3 | ||||||||||||||
